Intermittant Series
Precision Intermittent Motion
Precision-driven vertical packaging designed for consistent, versatile and efficient pouch formation.
Four Quad Bag Maker
Four Quad Bag Maker
Specifications
| Film Code | Film Description |
|---|---|
| No of Heads | NA |
| Sealing Style | Center |
| Speed | 60 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Servo Make | Delta 1 kW |
| Product to be Packed | Fine powder, Mehndi, spices, atta, maida (Specially fine powder those stucks in hopper) |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Auger Filler |
| Filling Capacity | 10gm-2000gm |
| Power Consumption | 7 kW/ Hr |
| Maximum Roll Width | 450 mm |
| Main Motor | 230 V, Single Phase |
| Dimension of machine | 1500 x 1200 x 3000 mm |
| Machine Weight | 1050 kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 4 cu Mtrs/Hr |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | HMI based |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Pneumatic air |
| Display Setting | Through touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Batch Cutter Operation | Pneumatic |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
| Film -Draw off | Servo Motor |
| Filling | Fully controlled by servo |
| Safety | SS Covering/ Acrylic Sheet (As per machine & Customer requirement) |
| Film Tracking | Manual |

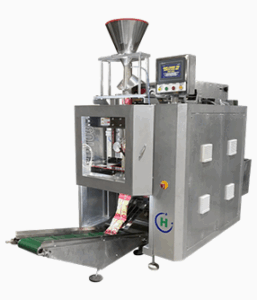

High Speed Servo Cup Filler
High Speed Servo Cup Filler
Specifications
| Film Code | Film Description |
|---|---|
| No of Heads | NA |
| Sealing Style | Center |
| Speed | 95 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Servo Make | Delta 1 kW |
| Product to be Packed | Snacks, Tea, Grains, Sugar, Coffee, Spices, Detergent Powder, Salt, Etc |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 10gm-1000gm |
| Power Consumption | 5 kW/ Hr |
| Maximum Roll Width | 450 mm |
| Main Motor | 230 V, Single Phase |
| Dimension of machine | 2100 x 2000 x 3000 mm |
| Machine Weight | 1000 kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 1.5 cu Mtrs/Hr |
| Weight Variation | within +/- 1.5%** of the filled quantity |
| Temprature controller | HMI based |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Pneumatic air |
| Display Setting | Through touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Batch Cutter Operation | Pneumatic |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
| Film -Draw off | Servo Motor |
| Filling | Fully controlled by servo |
| Safety | SS Covering/ Acrylic Sheet (As per machine & Customer requirement) |
| Film Tracking | Manual |

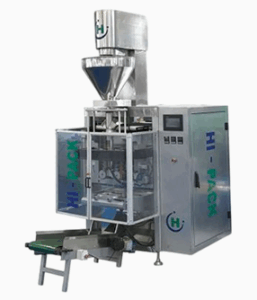

High Speed Servo Auger Filler
High Speed Servo Auger Filler
Specifications
| Film Code | Film Description |
|---|---|
| No of Heads | NA |
| Sealing Style | Center |
| Speed | 95 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Servo Make | Delta 1 kW |
| Product to be Packed | Fine powder, Mehndi, spices, atta, maida (Specially fine powder those stucks in hopper) |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Auger Filler |
| Filling Capacity | 10gm-1000gm |
| Power Consumption | 7.5 kW/ Hr |
| Maximum Roll Width | 450 mm |
| Main Motor | 230 V, Three Phase |
| Dimension of machine | 2100 x 2000 x 4000 mm |
| Machine Weight | 1250 kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 1.5 cu Mtrs/Hr |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | HMI based |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Pneumatic air |
| Display Setting | Through touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Batch Cutter Operation | Pneumatic |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
| Film -Draw off | Servo Motor |
| Filling | Fully controlled by servo |
| Safety | SS Covering/ Acrylic Sheet (As per machine & Customer requirement) |
| Film Tracking | Manual |
High Speed Servo Bag Maker
High Speed Servo Bag Maker
Specifications
| Film Code | Film Description |
|---|---|
| No of Heads | NA |
| Sealing Style | Center |
| Speed | 95 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Servo Make | Delta 1 kW |
| Product to be Packed | Snacks, Tea, Grains, Sugar, Coffee, Spices, Detergent Powder, Salt, Etc |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 10gm-1000gm |
| Power Consumption | 5 kW/ Hr |
| Maximum Roll Width | 450 mm |
| Main Motor | 230 V, Single Phase |
| Dimension of machine | 2100 x 2000 x 3000 mm |
| Machine Weight | 1200 kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 1.5 cu Mtrs/Hr |
| Weight Variation | within +/- 1.5%** of the filled quantity |
| Temprature controller | HMI based |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Pneumatic air |
| Display Setting | Through touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Batch Cutter Operation | Pneumatic |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
| Film -Draw off | Servo Motor |
| Filling | Fully controlled by servo |
| Safety | SS Covering/ Acrylic Sheet (As per machine & Customer requirement) |
| Film Tracking | Manual |
